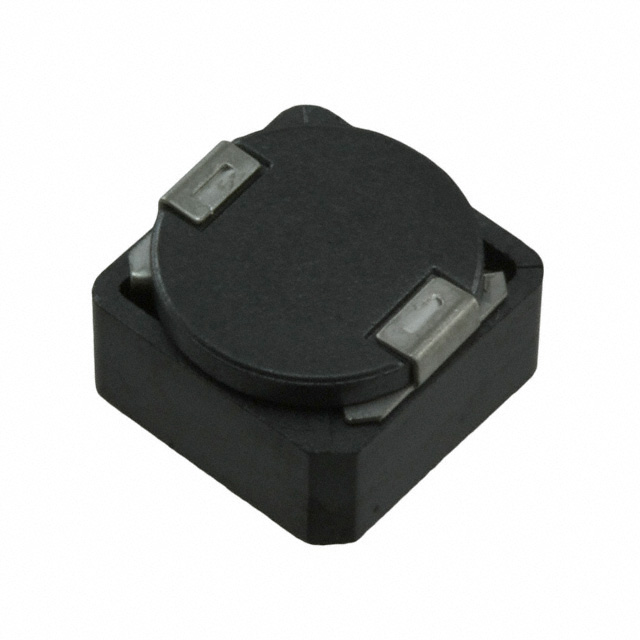

| Part number: | 7447797050 |
| Description: | FIXED IND 500NH 13.2A 5 MOHM SMD |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Tolerance | ±30% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.402" L x 0.402" W (10.20mm x 10.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 150°C |
| DC Resistance (DCR) | 5mOhm Max |
| Frequency - Self Resonant | 182MHz |
| Current - Saturation (Isat) | 23A |
| Material - Core | Nickel Zinc Ferrite (NiZn) |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.177" (4.50mm) |
| Inductance | 500 nH |
| Current Rating (Amps) | 13.2 A |
|
