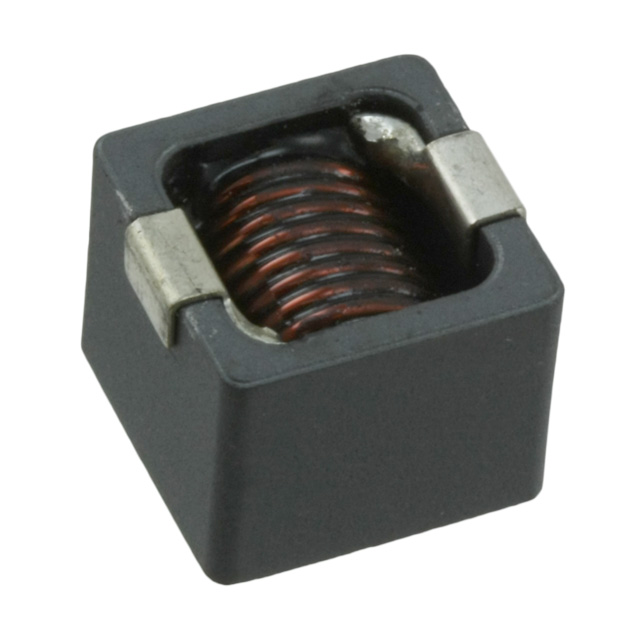

| Part number: | 7443320680 |
| Description: | FIXED IND 6.8UH 13A 11 MOHM SMD |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 300 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.476" L x 0.449" W (12.10mm x 11.40mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 11mOhm Max |
| Frequency - Self Resonant | 42MHz |
| Current - Saturation (Isat) | 13A |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Inductance | 6.8 µH |
| Current Rating (Amps) | 13 A |
|
