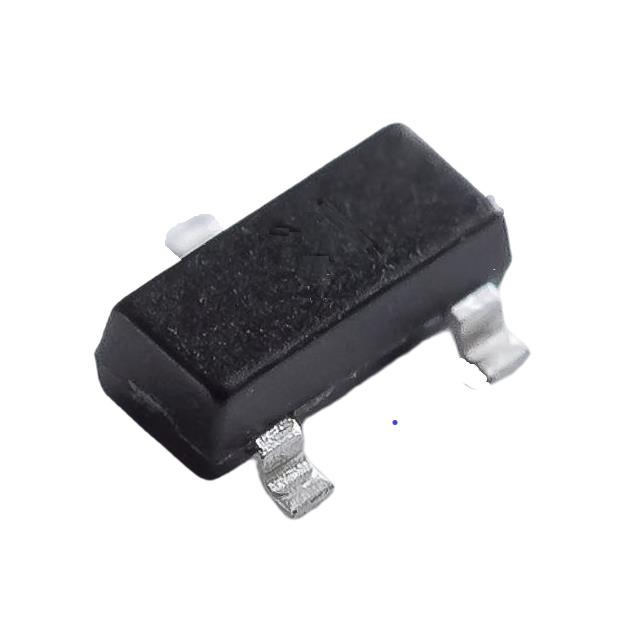

| Part number: | MS60P03 |
| Description: | P-Channel MOSFET,60V,-60A,SOT-23 |
| Manufacturer | Bruckewell |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Bruckewell" |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) |
| Rds On (Max) @ Id, Vgs | 140mOhm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | SOT-23 |
| Vgs (Max) | ±20V |
|
