| Part number: | 10M332J |

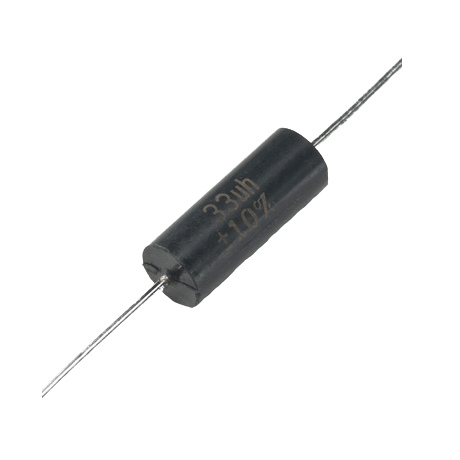

| Description: | MOLDED UNSHIELDED RF COILS AXIAL |
| Manufacturer | Gowanda |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Gowanda" |
| Tolerance | ±5% |
| Package / Case | Axial |
| Size / Dimension | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -55°C ~ 105°C |
| DC Resistance (DCR) | 3.4Ohm Max |
| Q @ Freq | 45 @ 2.5MHz |
| Frequency - Self Resonant | 24MHz |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 2.5 MHz |
| Supplier Device Package | Axial |
| Inductance | 33 µH |
| Current Rating (Amps) | 130 mA |
|
