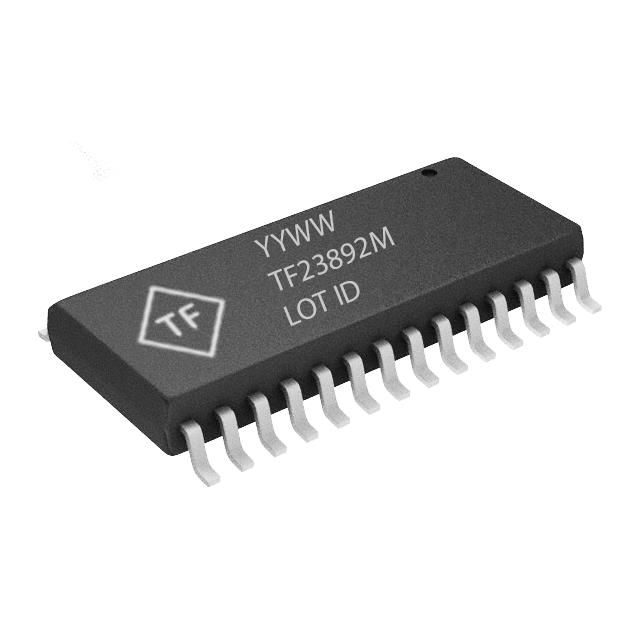

| Part number: | TF23892M |
| Description: | 600V, 3-PHASE GATE DRIVER |
| Manufacturer | TF Semiconductor Solutions |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TF Semiconductor Solutions" |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 10V ~ 20V |
| Input Type | Inverting |
| Supplier Device Package | 28-SOIC |
| Rise / Fall Time (Typ) | 40ns, 25ns |
| Channel Type | 3-Phase |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 350mA, 650mA |
| DigiKey Programmable | Not Verified |
|
