| Part number: | TF0211E |
| Description: | LOW SIDE, SINGLE GATE DRIVER |
| Manufacturer | TF Semiconductor Solutions |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TF Semiconductor Solutions" |

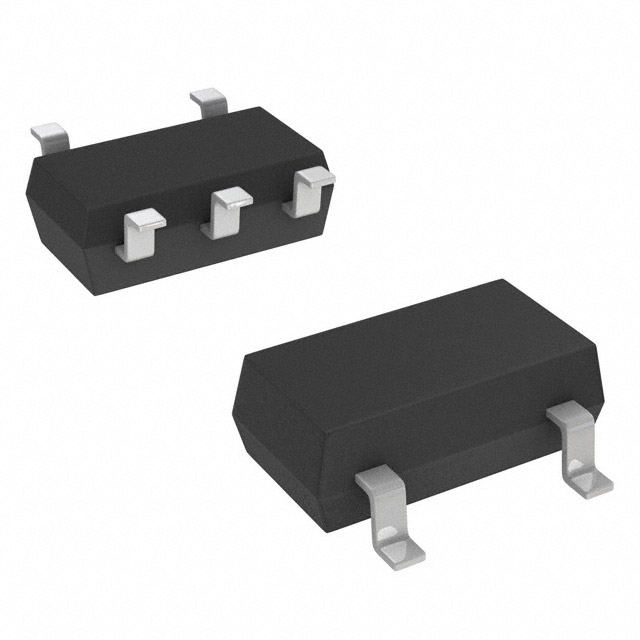

| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 4.5V ~ 18V |
| Input Type | Inverting, Non-Inverting |
| Supplier Device Package | SOT-23-5 |
| Rise / Fall Time (Typ) | 15ns, 15ns |
| Channel Type | Single |
| Driven Configuration | Low-Side |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.9A, 1.8A |
| DigiKey Programmable | Not Verified |
|
