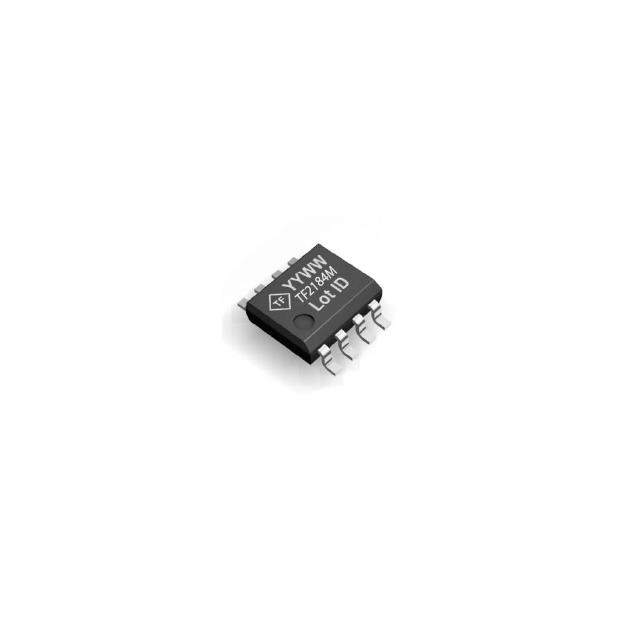

| Part number: | TF2184M |
| Description: | 600V, HALF BRIDGE GATE DRIVER |
| Manufacturer | TF Semiconductor Solutions |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TF Semiconductor Solutions" |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 10V ~ 20V |
| Input Type | Non-Inverting |
| Supplier Device Package | 8-SOIC |
| Rise / Fall Time (Typ) | 40ns, 20ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 1.9A, 2.3A |
| DigiKey Programmable | Not Verified |
|
