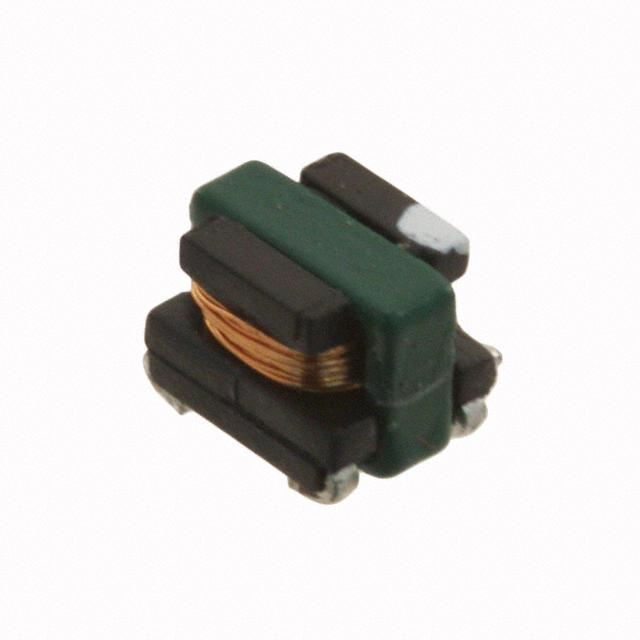

| Part number: | B82801A0135A125 |
| Description: | CURR SENSE XFMR 1:125 SMD |
| Manufacturer | TDK EPCOS |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 600 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TDK EPCOS" |
| Size / Dimension | 0.138" L x 0.185" W (3.50mm x 4.70mm) |
| Mounting Type | Surface Mount |
| Type | Invasive |
| Termination Style | J Lead |
| DC Resistance (DCR) | 2.5mOhm Primary, 13Ohm Secondary |
| Turns Ratio - Primary:Secondary | 1:125 |
| Frequency Range | 50kHz ~ 1MHz |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Inductance | 1.28 mH |
|
