| Part number: | ICE22N60W |
| Description: | Superjunction MOSFET |
| Manufacturer | IceMOS Technology |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IceMOS Technology" |

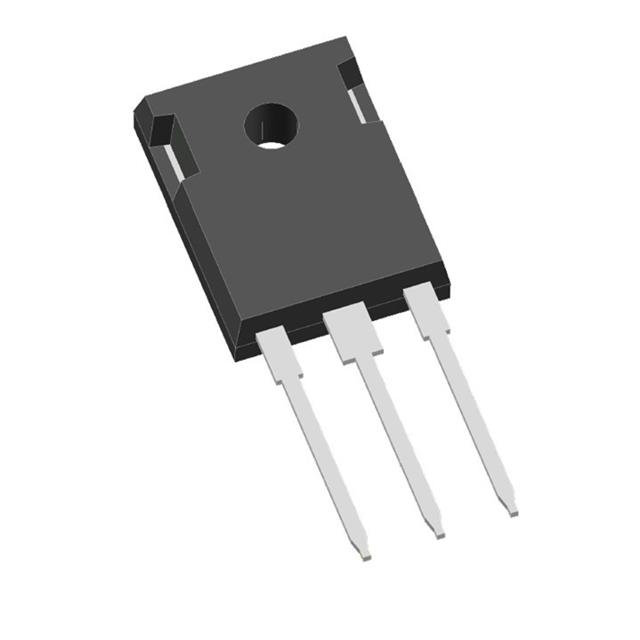

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 22A (Tc) |
| Rds On (Max) @ Id, Vgs | 160mOhm @ 11A, 10V |
| Power Dissipation (Max) | 208W (Tc) |
| Vgs(th) (Max) @ Id | 3.9V @ 250µA |
| Supplier Device Package | TO-247 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 72 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2730 pF @ 25 V |
|
