| Part number: | SQA310CEJW-T1_GE3 |
| Description: | AUTOMOTIVE N-CHANNEL 30 V (D-S) |
| Manufacturer | Vishay / Siliconix |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay / Siliconix" |

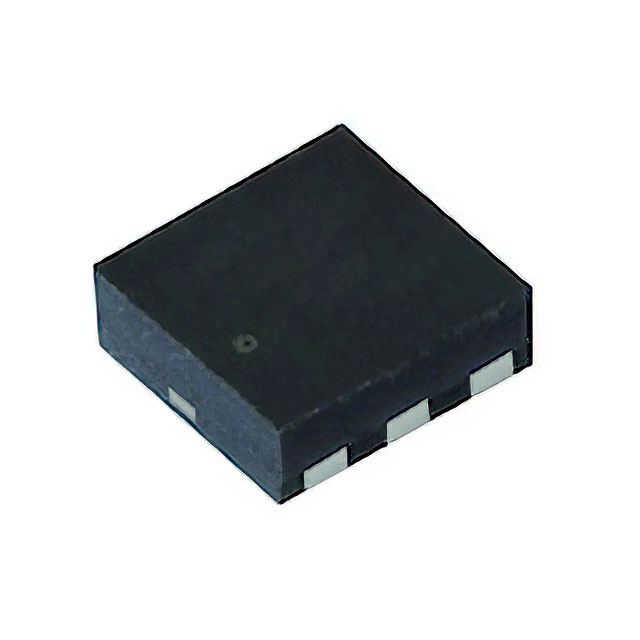

| Package / Case | PowerPAK® SC-70-6 |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tc) |
| Rds On (Max) @ Id, Vgs | 19mOhm @ 3A, 10V |
| Power Dissipation (Max) | 13.6W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | PowerPAK®SC-70W-6 |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 535 pF @ 25 V |
| Qualification | AEC-Q101 |
|
