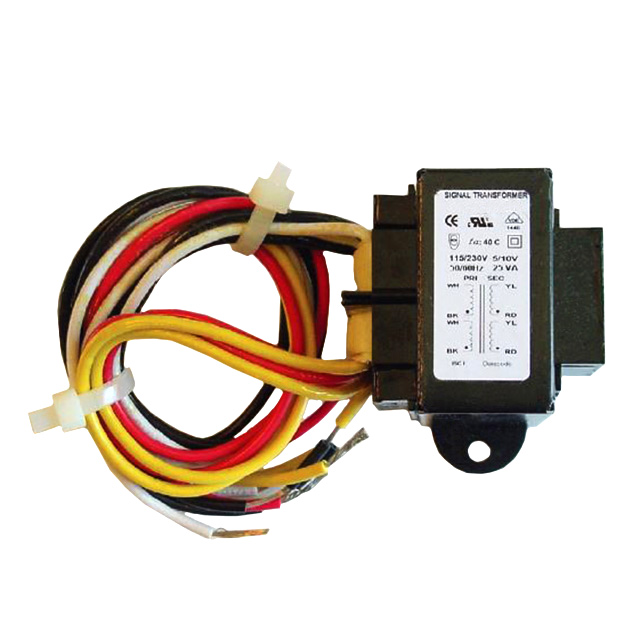

| Part number: | A41-25-36L |
| Description: | PWR XFMR LAMINATED 25VA CHAS MT |
| Manufacturer | Signal Transformer |
| Encapsulation | Box |
| Quantity | 20 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Signal Transformer" |
| Size / Dimension | 71.40mm L x 54.40mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 1.3 lbs (589.7 g) |
| Termination Style | Wire Leads |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Power - Max | 25VA |
| Voltage - Isolation | 4000Vrms |
| Current - Output (Max) | Parallel 1.4A, Series 700mA |
| Voltage - Primary | 115V, 230V |
| Height - Seated (Max) | 58.70mm |
| Voltage - Secondary (Full Load) | Parallel 18V, Series 36V |
| Center Tap | No |
|
