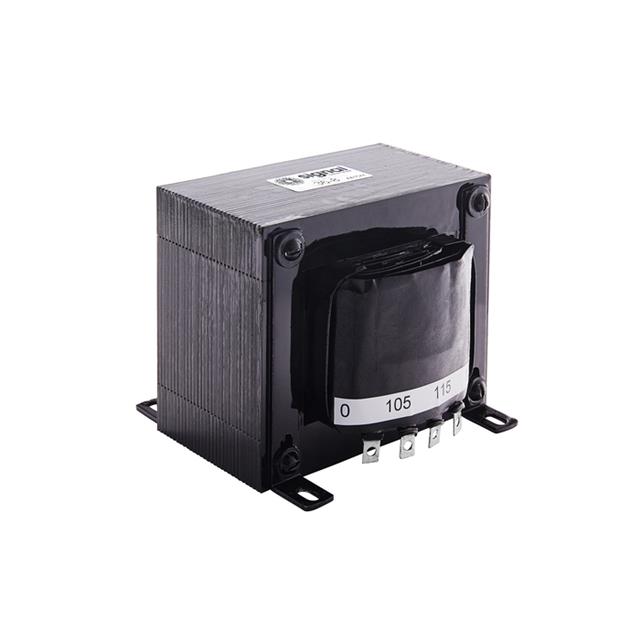

| Part number: | 36-30 |
| Description: | PWR XFMR LAMINATED 1080VA CHAS |
| Manufacturer | Signal Transformer |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Signal Transformer" |
| Size / Dimension | 162.00mm L x 152.40mm W |
| Mounting Type | Chassis Mount |
| Type | Laminated Core |
| Weight | 32 lbs (14.5 kg) |
| Termination Style | Solder, Quick Connect |
| Primary Winding(s) | Single, Multiple Taps |
| Secondary Winding(s) | Dual |
| Power - Max | 1080VA |
| Voltage - Isolation | 1500Vrms |
| Current - Output (Max) | Parallel 60A, Series 30A |
| Voltage - Primary | 105V, 115V, 125V |
| Height - Seated (Max) | 134.90mm |
| Voltage - Secondary (Full Load) | Parallel 18V, Series 36V |
| Center Tap | Yes |
|
