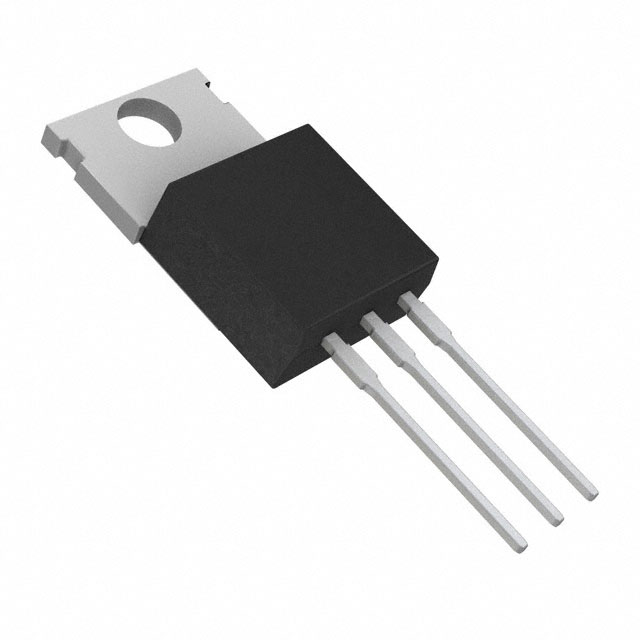

| Part number: | 2N6403TG |
| Description: | SCR 400V 16A TO220AB |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tube |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 40 mA |
| Current - Gate Trigger (Igt) (Max) | 30 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 160A @ 60Hz |
| Current - On State (It (AV)) (Max) | 10 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - On State (Vtm) (Max) | 1.7 V |
| Current - Off State (Max) | 10 µA |
| Supplier Device Package | TO-220AB |
| Current - On State (It (RMS)) (Max) | 16 A |
| Voltage - Off State | 400 V |
|
