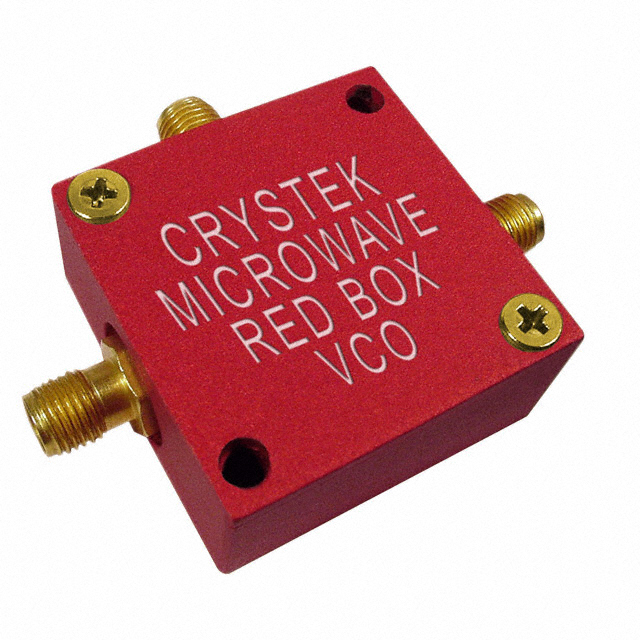

| Part number: | CRBV55CL-0600-0880 |
| Description: | VCO 740MHZ 0.5-4.5V 31.75X14.99 |
| Manufacturer | Crystek Corporation |
| Encapsulation | Tray |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Crystek Corporation" |
| Package / Case | Module Adapter, SMA F (3) |
| Size / Dimension | 1.250" L x 0.590" W (31.75mm x 14.99mm) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 5V |
| Height | 1.250" (31.75mm) |
| Frequency Range | 600 ~ 880MHz |
| 2nd Harmonic, Typ (dBc) | -10 |
| Frequency - Center | 740MHz |
| Icc Max | 20mA |
| Pushing (MHz/V) | 2 |
| Phase Noise Typ (dBc/Hz) | -98 |
| Power (dBm) | 0 ±3 |
| Tuning Voltage (VDC) | 0.5 V ~ 4.5 V |
|
