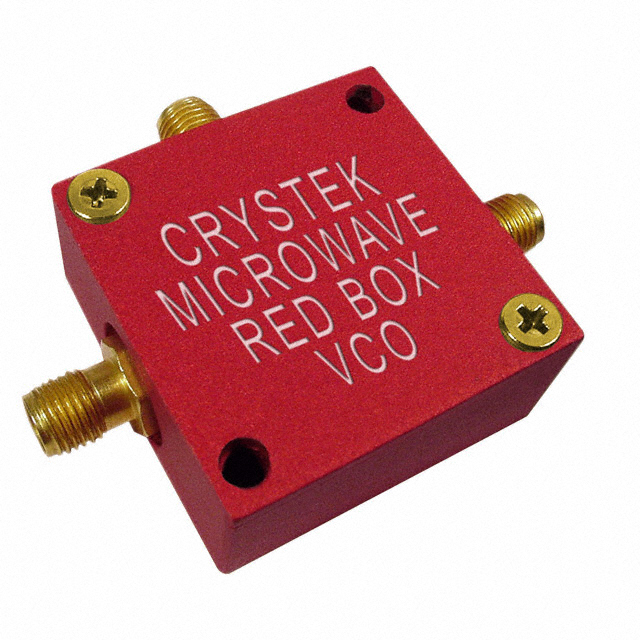

| Part number: | CRBV55BE-2900-3300 |
| Description: | VCO 3100MHZ 0-16V 31.75X14.99MM |
| Manufacturer | Crystek Corporation |
| Encapsulation | Tray |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Crystek Corporation" |
| Package / Case | Module Adapter, SMA F (3) |
| Size / Dimension | 1.250" L x 0.590" W (31.75mm x 14.99mm) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 8V |
| Height | 1.250" (31.75mm) |
| Frequency Range | 2900 ~ 3300MHz |
| 2nd Harmonic, Typ (dBc) | -15 |
| Frequency - Center | 3100MHz |
| Icc Max | 28mA |
| Pushing (MHz/V) | 0.5 |
| Phase Noise Typ (dBc/Hz) | -95 |
| Power (dBm) | 2.5 ±2.5 |
| Tuning Voltage (VDC) | 0 V ~ 16 V |
|
