| Part number: | G75P04S |
| Description: | MOSFET, P-CH,-40V,-11A,RD(MAX)<8 |
| Manufacturer | Goford Semiconductor |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Goford Semiconductor" |

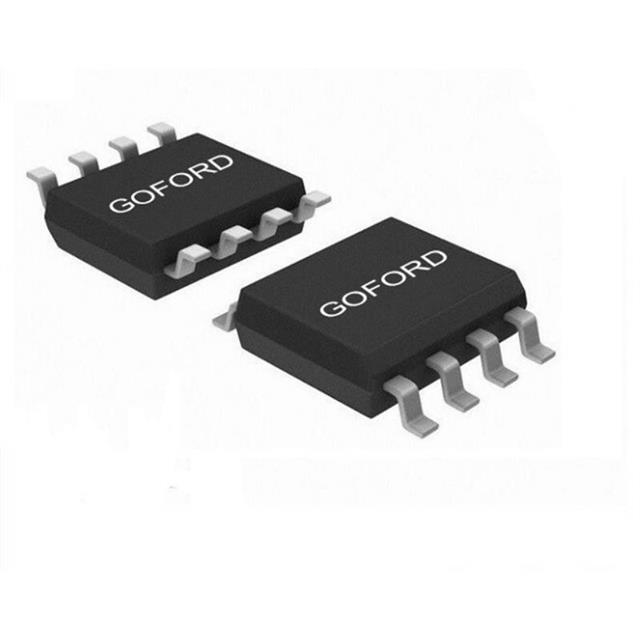

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 10A, 10V |
| Power Dissipation (Max) | 2.5W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 8-SOP |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 106 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6893 pF @ 20 V |
|
