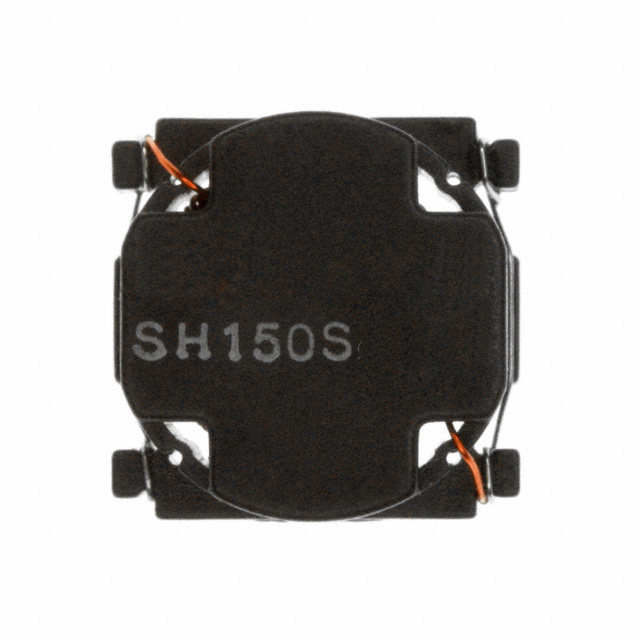

| Part number: | SH150S-0.82-78 |
| Description: | FIXED IND 78UH 820MA 300MOHM SMD |
| Manufacturer | Amgis |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 375 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Amgis" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.559" L x 0.551" W (14.20mm x 14.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Toroidal |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 300mOhm |
| Material - Core | Iron Powder |
| Inductance Frequency - Test | 10 kHz |
| Height - Seated (Max) | 0.337" (8.55mm) |
| Inductance | 78 µH |
| Current Rating (Amps) | 820 mA |
|
