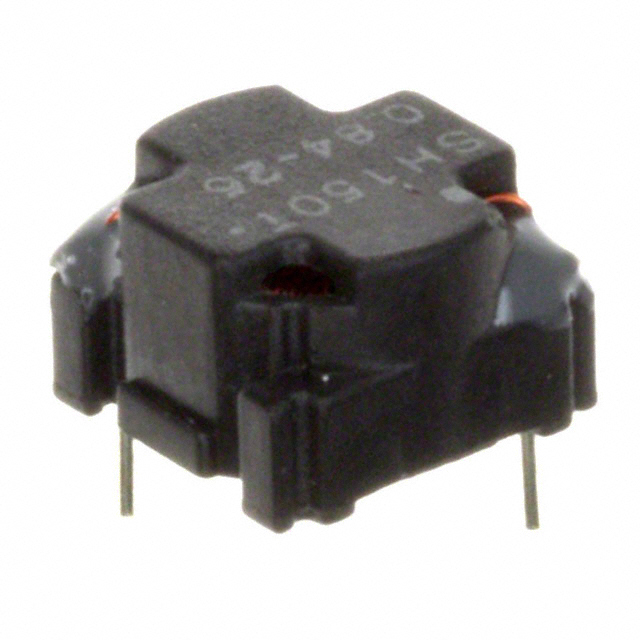

| Part number: | SH150T-0.84-26 |
| Description: | FIXED IND 26UH 840MA 200 MOHM TH |
| Manufacturer | Amgis |
| Encapsulation | Tray |
| Quantity | 200 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Amgis" |
| Tolerance | ±20% |
| Package / Case | Radial, Horizontal - Corner Terminals |
| Size / Dimension | 0.433" L x 0.441" W (11.00mm x 11.20mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Toroidal |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 200mOhm |
| Material - Core | Iron Powder |
| Inductance Frequency - Test | 10 kHz |
| Height - Seated (Max) | 0.280" (7.10mm) |
| Inductance | 26 µH |
| Current Rating (Amps) | 840 mA |
|
