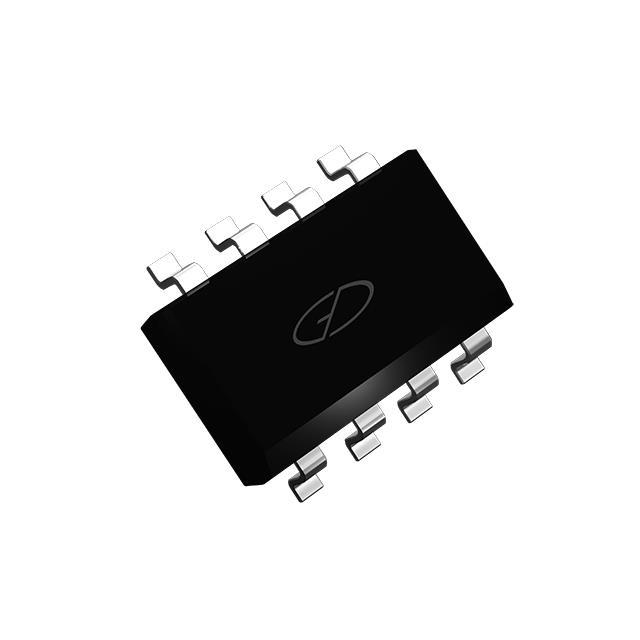

| Part number: | SSF6670 |
| Description: | MOSFET 2N-CH 60V 3.5A 8SOP |
| Manufacturer | Good Ark Semiconductor |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Good Ark Semiconductor" |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel |
| Operating Temperature | -55°C ~ 175°C |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.4W |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 3.5A |
| Input Capacitance (Ciss) (Max) @ Vds | 500pF @ 25V |
| Rds On (Max) @ Id, Vgs | 90mOhm @ 3A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 7nC @ 4.5V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | 8-SOP |
|
