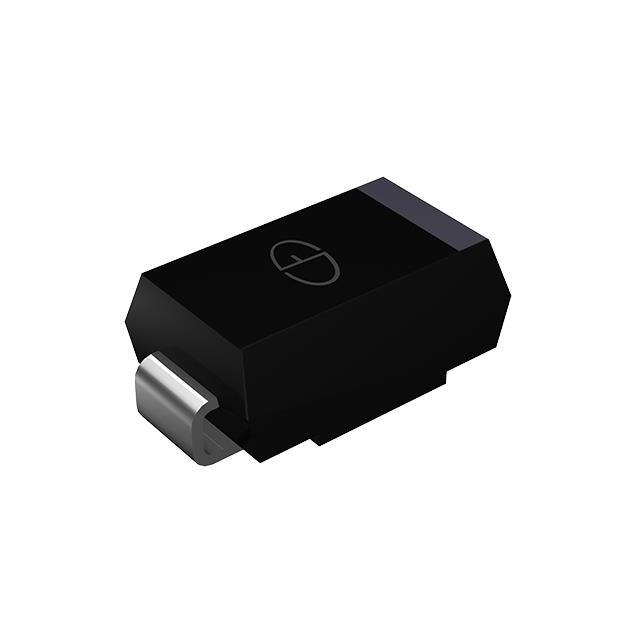

| Part number: | HS2MA |
| Description: | RECTIFIER, ULTRA-FAST/HIGH EFFIC |
| Manufacturer | Good Ark Semiconductor |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 7500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Good Ark Semiconductor" |
| Package / Case | DO-214AC, SMA |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 75 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 30pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1.5A |
| Supplier Device Package | DO-214AC (SMA) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 1.5 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 1000 V |
|
