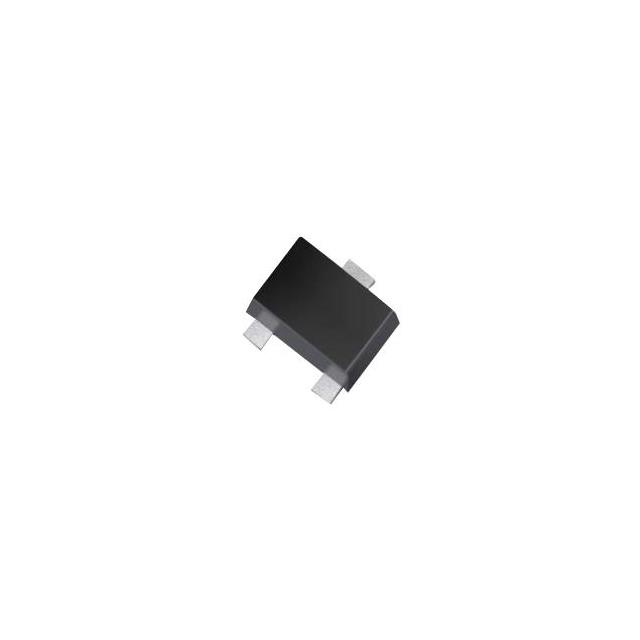

| Part number: | S3134K |
| Description: | MOSFET, N-CH, SINGLE, 0.75A, 20V |
| Manufacturer | Good Ark Semiconductor |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 8000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Good Ark Semiconductor" |
| Package / Case | SOT-723 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 750mA (Ta) |
| Rds On (Max) @ Id, Vgs | 380mOhm @ 650mA, 4.5V |
| Power Dissipation (Max) | 150mW (Ta) |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Supplier Device Package | SOT-723 |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 120 pF @ 16 V |
|
