| Part number: | MA-505 32.7680M-C0 |

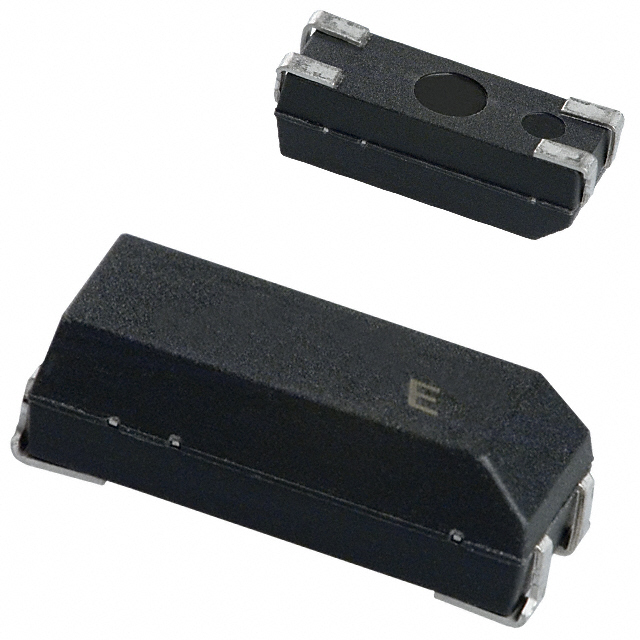

| Description: | CRYSTAL 32.7680MHZ 18PF SMD |
| Manufacturer | Epson |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Epson" |
| Package / Case | 4-SOJ, 3.30mm pitch |
| Load Capacitance | 18pF |
| Size / Dimension | 0.500" L x 0.200" W (12.70mm x 5.08mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -20°C ~ 70°C |
| Frequency Stability | ±30ppm |
| Frequency Tolerance | ±50ppm |
| Operating Mode | 3rd Overtone |
| Height - Seated (Max) | 0.181" (4.60mm) |
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Frequency | 32.768 MHz |
|
