| Part number: | DRA756PPIGABZQ1 |

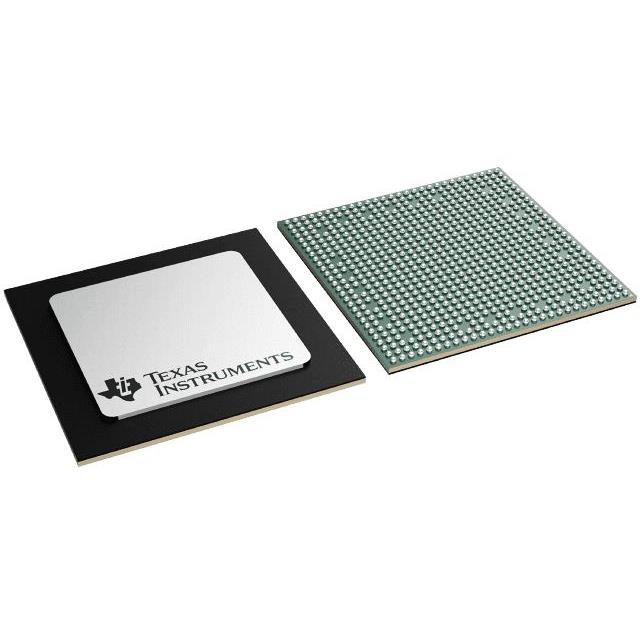

| Description: | IC MPU DRA75XP CORTEX-A15 760BGA |
| Manufacturer | Texas Instruments |
| Encapsulation | Tray |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Package / Case | 760-LFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.5GHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Core Processor | ARM® Cortex®-A15 |
| Voltage - I/O | 1.35V, 1.5V, 1.8V, 3.3V |
| Supplier Device Package | 760-FCBGA (23x23) |
| Ethernet | 10/100Mbps (1), 10/100/1000Mbps (1) |
| USB | USB 2.0 (3), USB 3.0 (1) |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | ARM® Cortex®-M4, C66x, IVA |
| RAM Controllers | DDR2, DDR3, DDR3L |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | HDMI, LCD |
| Security Features | Boot Security, Secure Debug |
| SATA | SATA |
| Additional Interfaces | I2C, McASP, SPI, MMC/SD, UART |
| Grade | Automotive |
| Qualification | AEC-Q100 |
|
