| Part number: | UCC1806J |
| Description: | LOW POWER, DUAL OUTPUT, CURRENT |
| Manufacturer | Texas Instruments |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |

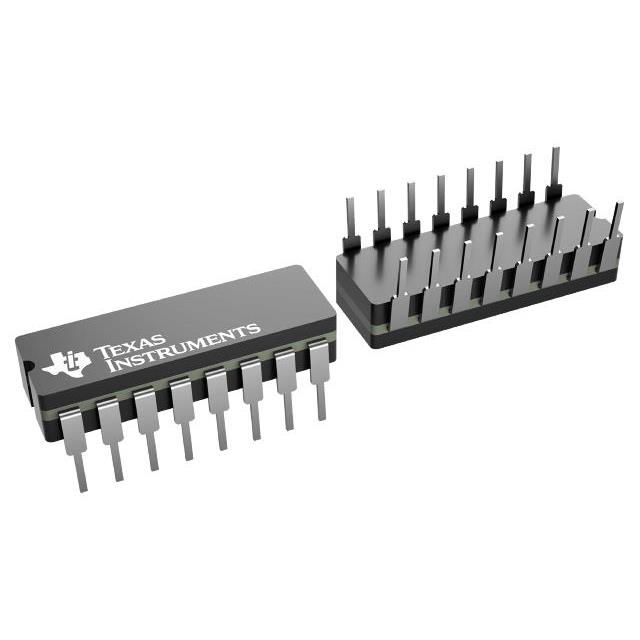

| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Output Type | PWM |
| Mounting Type | Through Hole |
| Function | Step-Up/Step-Down |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | 47kHz |
| Topology | Boost, Flyback, Forward |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 14.5V |
| Supplier Device Package | 16-CDIP |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable, Frequency Control |
| Output Phases | 1 |
| Duty Cycle (Max) | 50% |
| Clock Sync | Yes |
| Number of Outputs | 2 |
|
