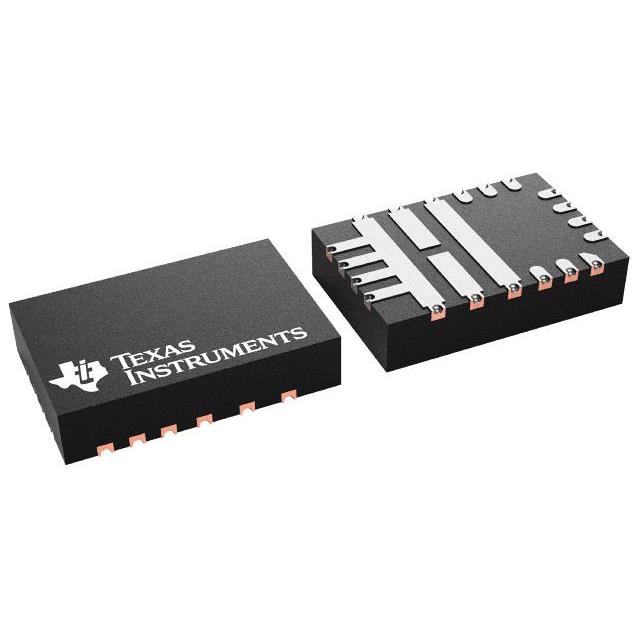

| Part number: | DRV8243HQDGQRQ1 |
| Description: | AUTOMOTIVE 40-V, 12-A H-BRIDGE D |
| Manufacturer | Texas Instruments |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Package / Case | 28-PowerTSSOP (0.118", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 12A |
| Interface | SPI |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.5V ~ 35V |
| Technology | Bi-CMOS |
| Voltage - Load | 4.5V ~ 35V |
| Supplier Device Package | 28-HTSSOP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Grade | Automotive |
| Qualification | AEC-Q100 |
|
