| Part number: | TL5001IPE4 |
| Description: | PWM CONTROLLER WITH WIDE INPUT R |
| Manufacturer | Texas Instruments |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |

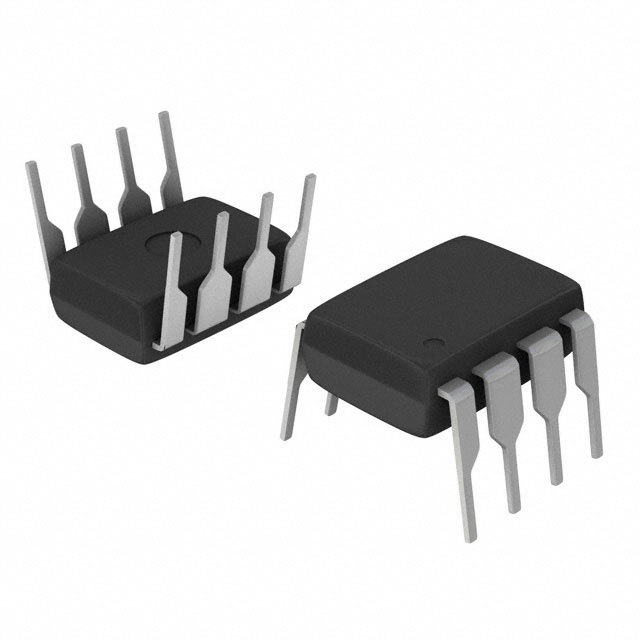

| Package / Case | 8-DIP (0.300", 7.62mm) |
| Output Type | Transistor Driver |
| Mounting Type | Through Hole |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 20kHz ~ 500kHz |
| Topology | Boost, Buck, Flyback |
| Voltage - Supply (Vcc/Vdd) | 3.6V ~ 40V |
| Supplier Device Package | 8-PDIP |
| Synchronous Rectifier | No |
| Control Features | Dead Time Control, Frequency Control, Ramp, Soft Start |
| Output Phases | 1 |
| Duty Cycle (Max) | 100% |
| Clock Sync | No |
| Number of Outputs | 1 |
|
