| Part number: | G60N06T |
| Description: | N60V, 50A,RD<17M@10V,VTH1.0V~2.0 |
| Manufacturer | Goford Semiconductor |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Goford Semiconductor" |

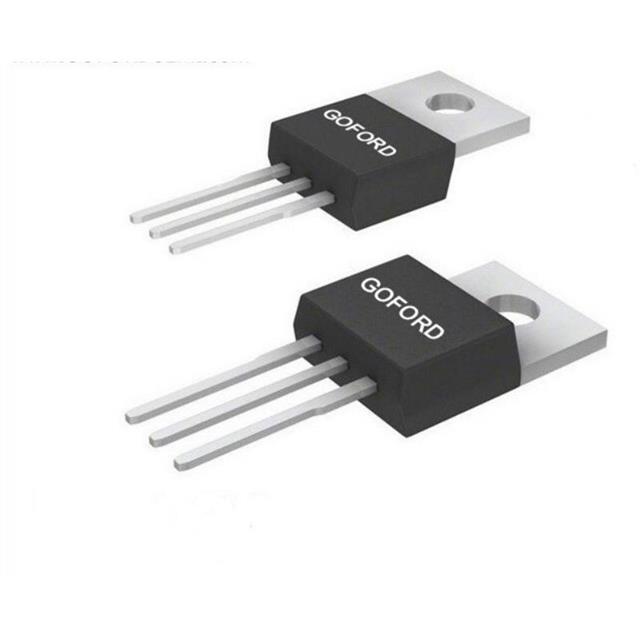

| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 50A (Tc) |
| Rds On (Max) @ Id, Vgs | 17mOhm @ 5A, 10V |
| Power Dissipation (Max) | 85W (Tc) |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Supplier Device Package | TO-220 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 50 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2050 pF @ 30 V |
|
