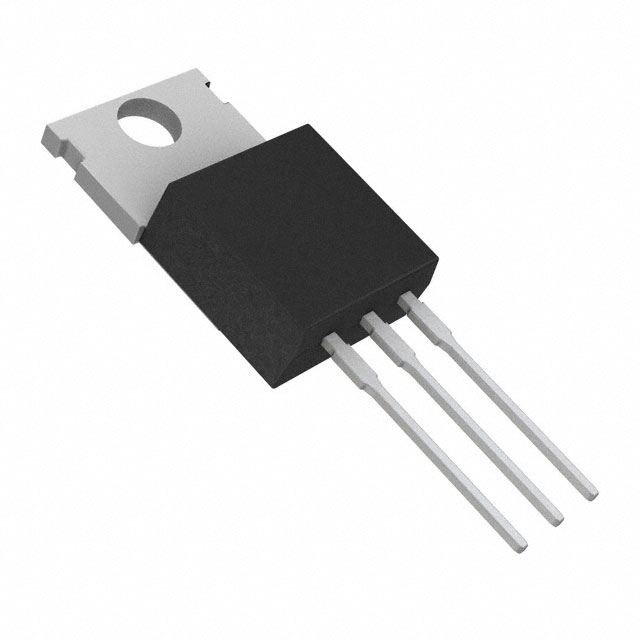

| Part number: | BTB08-800CW3G |
| Description: | TRIAC 800V 8A TO220AB |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tube |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Triac Type | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 45 mA |
| Current - Gate Trigger (Igt) (Max) | 35 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 90A @ 60Hz |
| Voltage - Gate Trigger (Vgt) (Max) | 1.1 V |
| Supplier Device Package | TO-220AB |
| Current - On State (It (RMS)) (Max) | 8 A |
| Voltage - Off State | 800 V |
|
