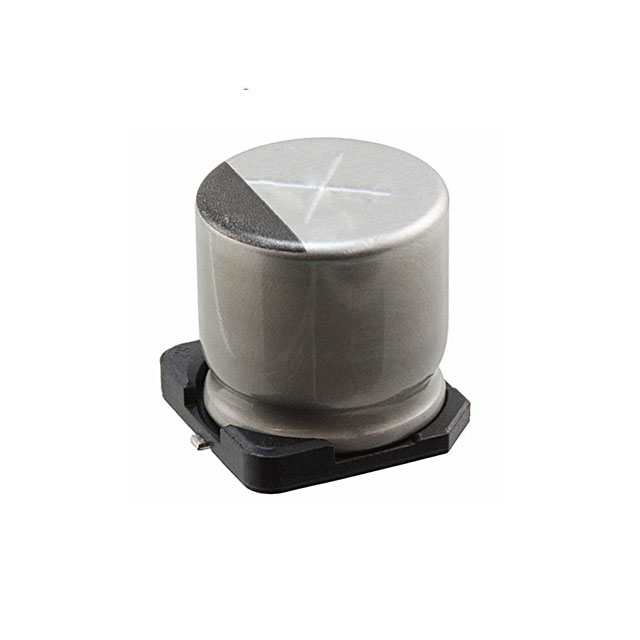

| Part number: | GYC1E271MCQ1GS |
| Description: | CAP ALUM HYB 270UF 20% 25V SMD |
| Manufacturer | Nichicon |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nichicon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Mounting Type | Surface Mount |
| Type | Hybrid |
| Operating Temperature | -55°C ~ 135°C |
| Applications | Automotive |
| Ratings | AEC-Q200 |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 135°C |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Capacitance | 270 µF |
| Voltage - Rated | 25 V |
| Ripple Current @ Low Frequency | 495 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.3 A @ 100 kHz |
|
