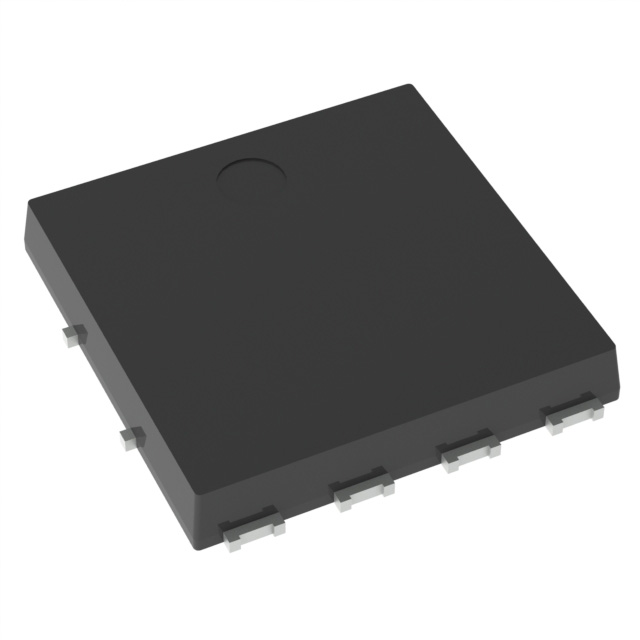

| Part number: | NTMTS002N10MCTXG |
| Description: | PTNG 100V, SINGLE NCH, PQFN8X8 S |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 45A (Ta), 236A (Tc) |
| Rds On (Max) @ Id, Vgs | 2.3mOhm @ 90A, 10V |
| Power Dissipation (Max) | 9W (Ta), 255W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 520µA |
| Supplier Device Package | 8-DFNW (8.3x8.4) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 89 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6305 pF @ 50 V |
|
