| Part number: | UZ157M035HFKTA |

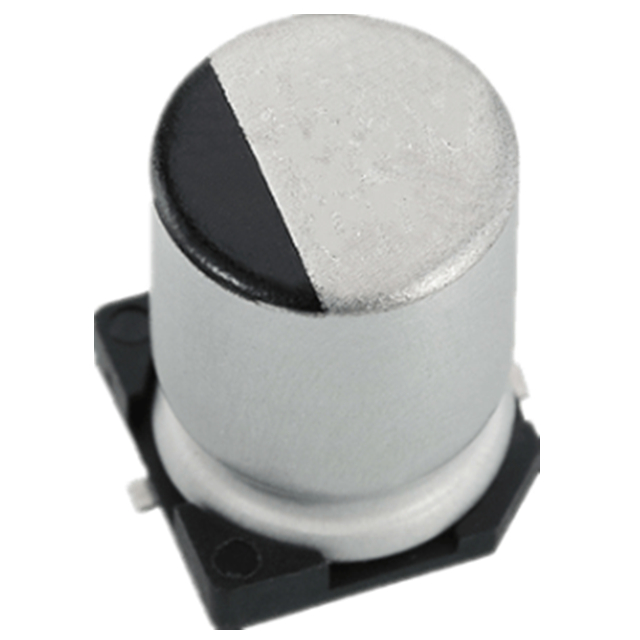

| Description: | CAP ALUM 150UF 20% 35V SMD |
| Manufacturer | Aillen |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Aillen" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| ESR (Equivalent Series Resistance) | 190mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Capacitance | 150 µF |
| Voltage - Rated | 35 V |
| Impedance | 160 mOhms |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
|
