| Part number: | UE107M010HEHTA |

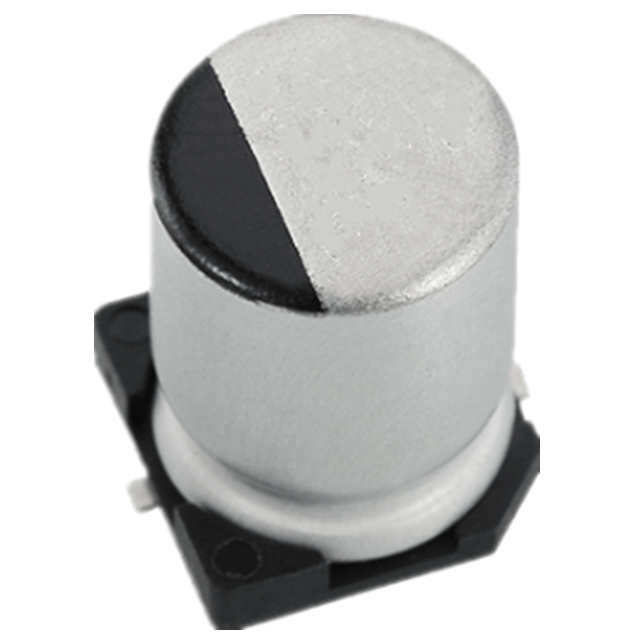

| Description: | CAP ALUM 100UF 20% 10V SMD |
| Manufacturer | Aillen |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Aillen" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| ESR (Equivalent Series Resistance) | 1Ohm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Capacitance | 100 µF |
| Voltage - Rated | 10 V |
| Impedance | 1 Ohms |
| Ripple Current @ High Frequency | 140 mA @ 100 kHz |
|
