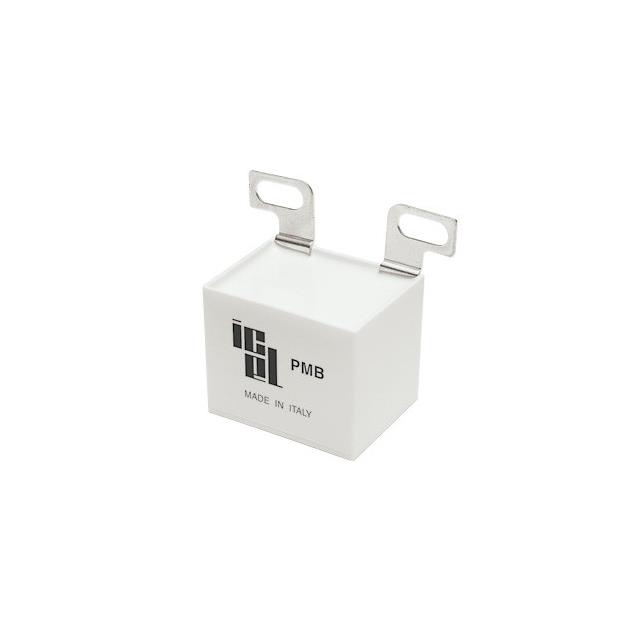

| Part number: | PMB2154150KBN |
| Description: | CAP FILM 1.5UF 10% 1.5KVDC SCREW |
| Manufacturer | Nichicon |
| Encapsulation | Bulk |
| Quantity | 84 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nichicon" |
| Tolerance | ±10% |
| Package / Case | Rectangular Box |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Termination | Screw Terminals |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 650V |
| Voltage Rating - DC | 1500V (1.5kV) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Capacitance | 1.5 µF |
| ESR (Equivalent Series Resistance) | 2.5 mOhms |
| Size / Dimension | 2.264" L x 1.378" W (57.50mm x 35.00mm) |
|
