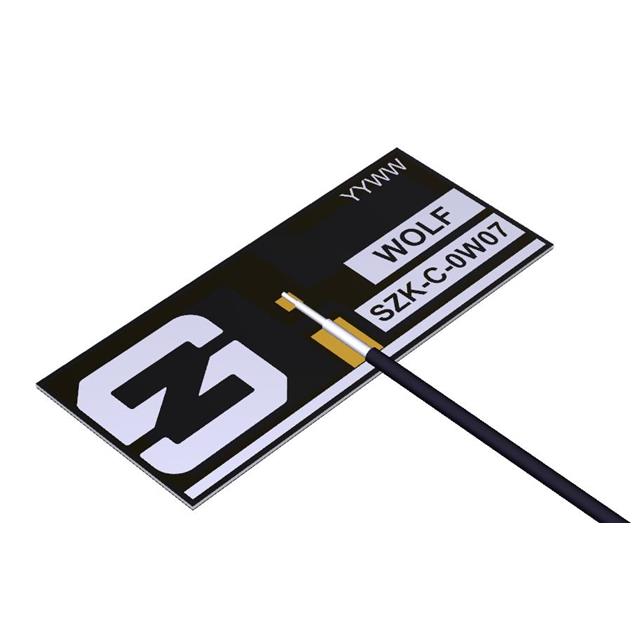

| Part number: | SZK-C-0W07 |
| Description: | RF ANT WIFI 6GHZ FLEX ADHES UFL |
| Manufacturer | Synzen |
| Encapsulation | Bag |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Synzen" |
| Features | Cable - 100mm |
| Mounting Type | Adhesive |
| Frequency Range | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Applications | 802.11a/b/g/-c/ax, Bluetooth, Wi-Fi, WLAN |
| Gain | 1.85dBi, 5.5dBi, 3.4dBi |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Number of Bands | 3 |
| VSWR | 1.84, 2.2, 2.6 |
| Antenna Type | PCB Trace |
| Height (Max) | 0.008" (0.20mm) |
| Return Loss | -7dB, -8.5dB, -10.1dB |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.45GHz, 5.375GHz, 6.525GHz |
| RF Family/Standard | Bluetooth, WiFi |
| Power - Max | 3 W |
|
