| Part number: | EY1V102MLT1225ER |

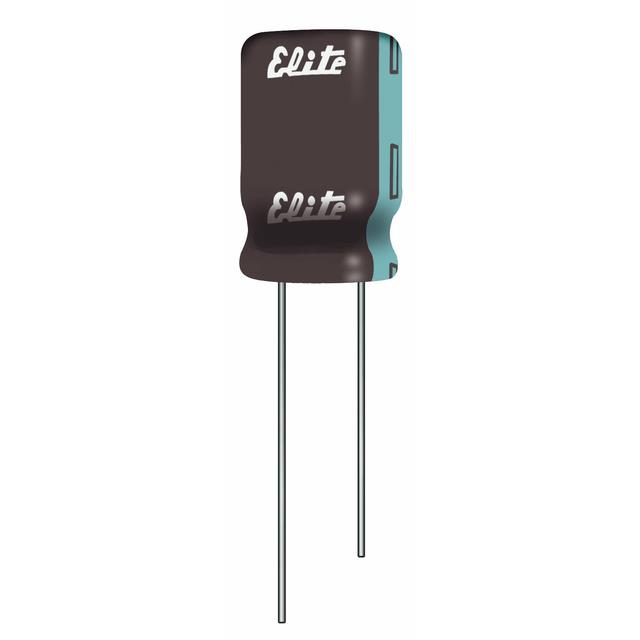

| Description: | CAP ALUM 1000UF 20% 35V RAD TH |
| Manufacturer | Taiwan Chinsan Electronic |
| Encapsulation | Bulk |
| Quantity | 315 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Taiwan Chinsan Electronic" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.197" (5.00mm) |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Capacitance | 1000 µF |
| Voltage - Rated | 35 V |
| Impedance | 60 mOhms |
| Ripple Current @ Low Frequency | 1.38 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3 A @ 100 kHz |
|
