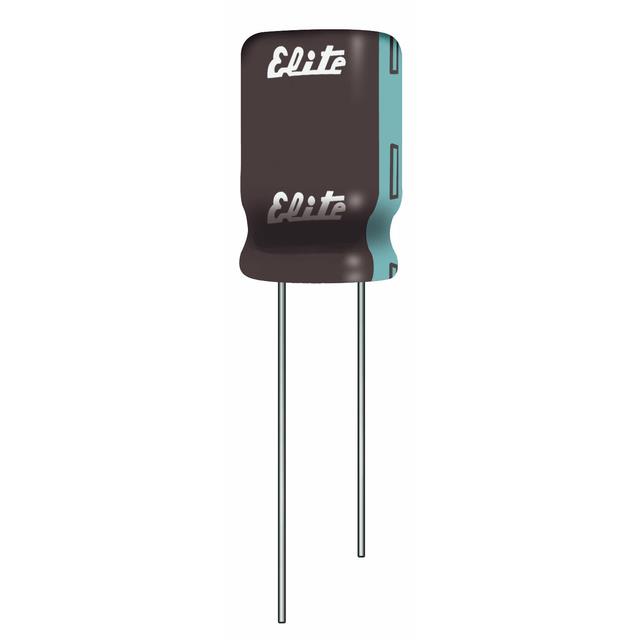

| Part number: | ED1A222MP51020U |
| Description: | CAP ALUM 2200UF 20% 10V RAD TH |
| Manufacturer | Taiwan Chinsan Electronic |
| Encapsulation | Cut Tape (CT) |
| Quantity | 800 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Taiwan Chinsan Electronic" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.197" (5.00mm) |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Capacitance | 2200 µF |
| Voltage - Rated | 10 V |
| Impedance | 45 mOhms |
| Ripple Current @ Low Frequency | 910 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.3 A @ 100 kHz |
|
