| Part number: | VQ2E121MPI1620E |

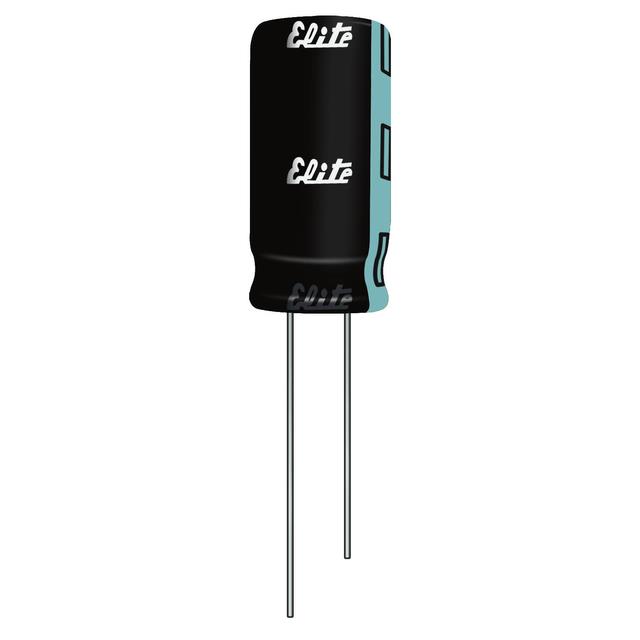

| Description: | CAP ALUM 120UF 20% 250V RAD TH |
| Manufacturer | Taiwan Chinsan Electronic |
| Encapsulation | Cut Tape (CT) |
| Quantity | 250 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Taiwan Chinsan Electronic" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.295" (7.50mm) |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Capacitance | 120 µF |
| Voltage - Rated | 250 V |
| Impedance | 40 mOhms |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 980 mA @ 100 kHz |
|
