KJ2D220MP51020
Part number: KJ2D220MP51020

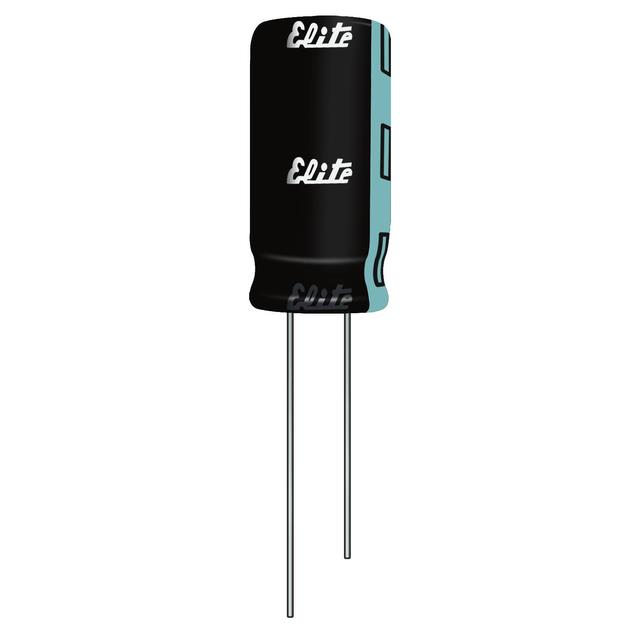

Description: CAP ALUM 22UF 20% 200V RADIAL TH
Manufacturer Taiwan Chinsan Electronic
Encapsulation Cut Tape (CT)
Quantity 800
RoHS 1
TYPEDESCRIPTION
Mfr"Taiwan Chinsan Electronic"
Tolerance ±20%
Package / Case Radial, Can
Size / Dimension 0.394" Dia (10.00mm)
Polarization Polar
Mounting Type Through Hole
Operating Temperature -25°C ~ 105°C
Applications General Purpose
Lead Spacing 0.197" (5.00mm)
Lifetime @ Temp. 10000 Hrs @ 105°C
Height - Seated (Max) 0.846" (21.50mm)
Capacitance 22 µF
Voltage - Rated 200 V
Ripple Current @ Low Frequency 210 mA @ 120 Hz
Ripple Current @ High Frequency 525 mA @ 100 kHz
