| Part number: | LL2H100MP51220ER |

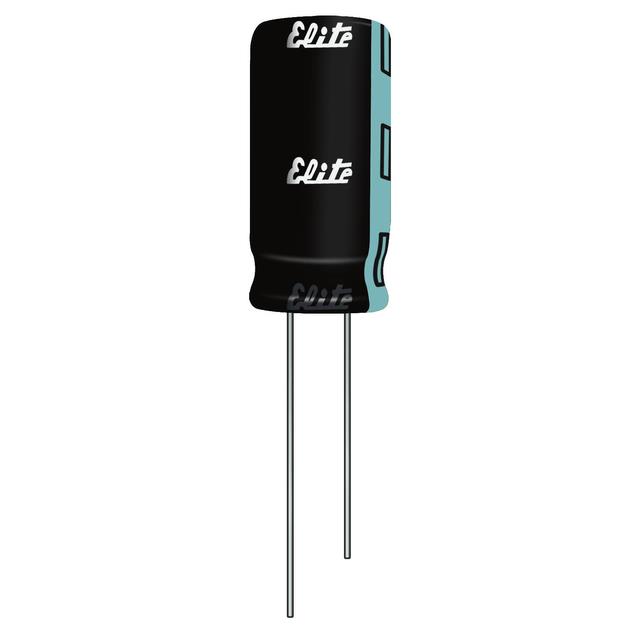

| Description: | CAP ALUM 10UF 20% 500V RADIAL TH |
| Manufacturer | Taiwan Chinsan Electronic |
| Encapsulation | Cut Tape (CT) |
| Quantity | 800 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Taiwan Chinsan Electronic" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.197" (5.00mm) |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Capacitance | 10 µF |
| Voltage - Rated | 500 V |
| Impedance | 3.5 Ohms |
| Ripple Current @ High Frequency | 315 mA @ 100 kHz |
|
