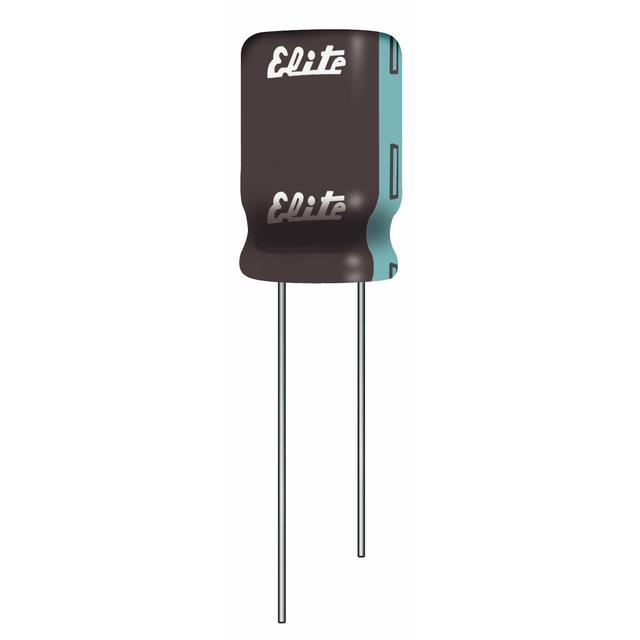

| Part number: | EK1E221MPN0812U |
| Description: | CAP ALUM 220UF 20% 25V RADIAL TH |
| Manufacturer | Taiwan Chinsan Electronic |
| Encapsulation | Cut Tape (CT) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Taiwan Chinsan Electronic" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.138" (3.50mm) |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Capacitance | 220 µF |
| Voltage - Rated | 25 V |
| Impedance | 72 mOhms |
| Ripple Current @ Low Frequency | 336 mA @ 120 Hz |
| Ripple Current @ High Frequency | 840 mA @ 100 kHz |
|
