| Part number: | PCXA503-4R7M |

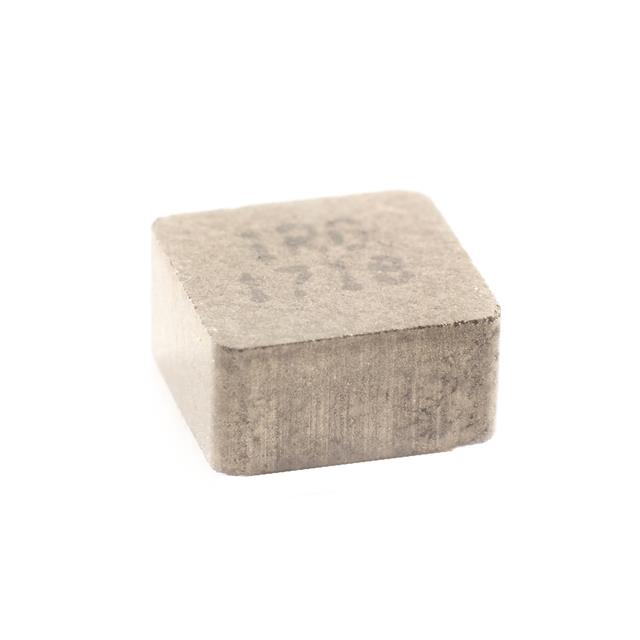

| Description: | 4.7uH 20% Shielded High Current |
| Manufacturer | Allied Components International |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Allied Components International" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.217" L x 0.209" W (5.50mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 36.3mOhm Max |
| Current - Saturation (Isat) | 7A |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.122" (3.10mm) |
| Inductance | 4.7 µH |
| Current Rating (Amps) | 5.9 A |
|
