| Part number: | IRGP4072DPBF |
| Description: | IRGP4072D - IGBT WITH ULTRAFAST |
| Manufacturer | International Rectifier |
| Encapsulation | Bulk |
| Quantity | 77 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "International Rectifier" |

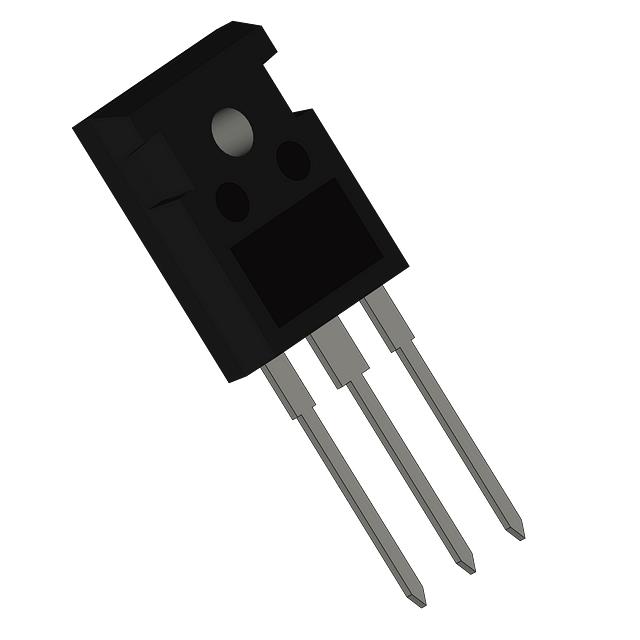

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 122 ns |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 40A |
| Supplier Device Package | TO-247AC |
| IGBT Type | Trench |
| Td (on/off) @ 25°C | 18ns/144ns |
| Switching Energy | 409µJ (on), 838µJ (off) |
| Test Condition | 240V, 40A, 10Ohm, 15V |
| Gate Charge | 73 nC |
| Current - Collector (Ic) (Max) | 70 A |
| Voltage - Collector Emitter Breakdown (Max) | 300 V |
| Current - Collector Pulsed (Icm) | 120 A |
| Power - Max | 180 W |
|
