| Part number: | ER1CAFC_R1_00001 |
| Description: | DIODE GEN PURP 150V 1A SMAF-C |
| Manufacturer | PANJIT |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 120000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PANJIT" |

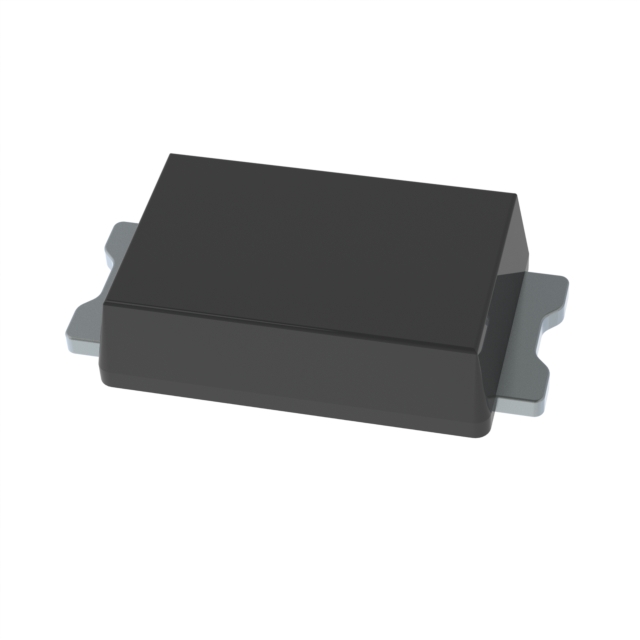

| Package / Case | DO-221AC, SMA Flat Leads |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 1A |
| Supplier Device Package | SMAF-C |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 1 µA @ 150 V |
|
