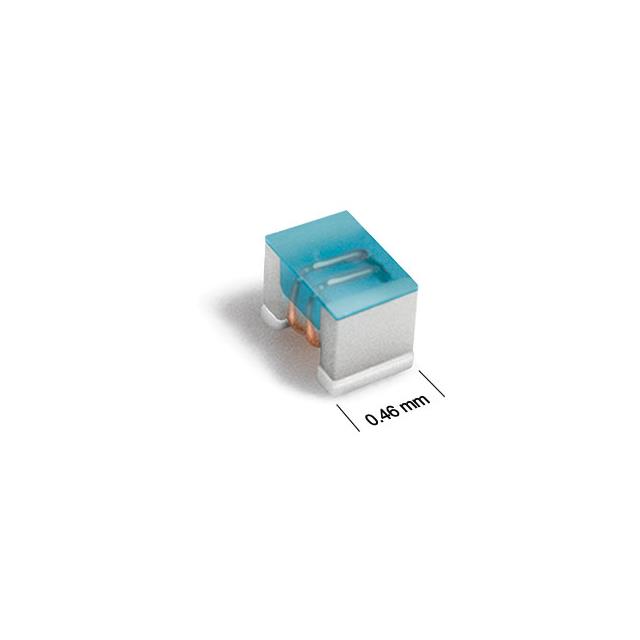

| Part number: | 0201DS-1N4XJEW |
| Description: | RF INDUCTOR, CERAMIC CORE, 5/10% |
| Manufacturer | COILCRAFT |
| Encapsulation | Strip |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "COILCRAFT" |
| Package / Case | 0201 (0603 Metric) |
| Size / Dimension | 0.067" L x 0.039" W (1.70mm x 0.99mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 80mOhm Max |
| Q @ Freq | 27 @ 900MHz |
| Frequency - Self Resonant | 17GHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 250 MHz |
| Supplier Device Package | 0201 |
| Height - Seated (Max) | 0.035" (0.89mm) |
| Inductance | 1.4 nH |
| Current Rating (Amps) | 630 mA |
|
