| Part number: | GPI65015TO |

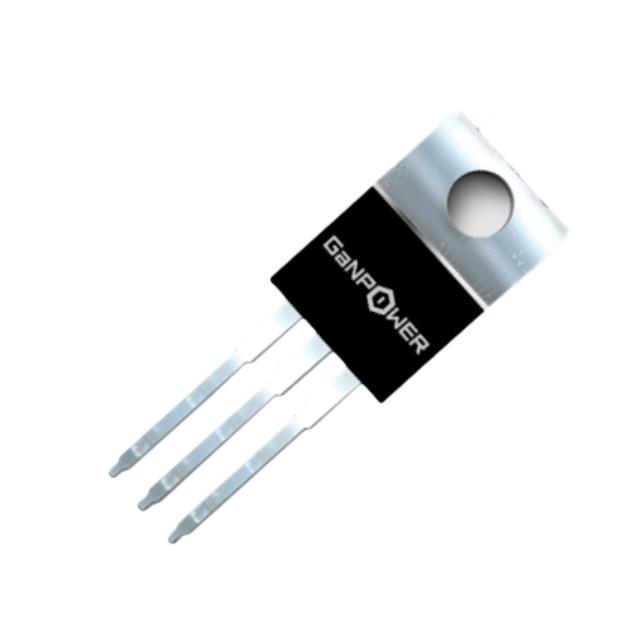

| Description: | GANFET N-CH 650V 15A TO220 |
| Manufacturer | GaNPower |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "GaNPower" |
| Package / Case | Die |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | GaNFET (Gallium Nitride) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 15A |
| Vgs(th) (Max) @ Id | 1.2V @ 3.5mA |
| Supplier Device Package | Die |
| Drive Voltage (Max Rds On, Min Rds On) | 6V |
| Vgs (Max) | +7.5V, -12V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 3.3 nC @ 6 V |
| Input Capacitance (Ciss) (Max) @ Vds | 123 pF @ 400 V |
|
