| Part number: | PSMN8R7-80PS,127 |
| Description: | NEXPERIA PSMN8R7 - N-CHANNEL 80 |
| Manufacturer | NXP Semiconductors |
| Encapsulation | Bulk |
| Quantity | 313 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "NXP Semiconductors" |

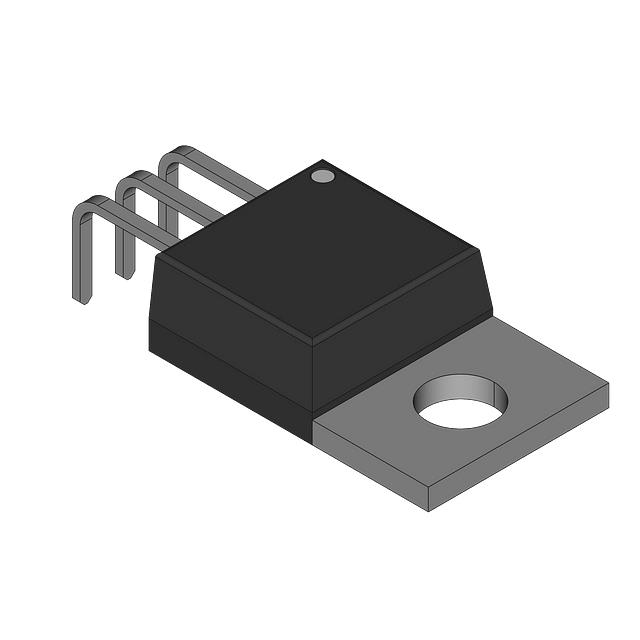

| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 90A (Tc) |
| Rds On (Max) @ Id, Vgs | 8.7mOhm @ 10A, 10V |
| Power Dissipation (Max) | 170W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Supplier Device Package | TO-220AB |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 52 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3346 pF @ 40 V |
|
