| Part number: | MAC4DSN-001 |
| Description: | TRIAC SENS GATE 800V 4A IPAK |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 75 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |

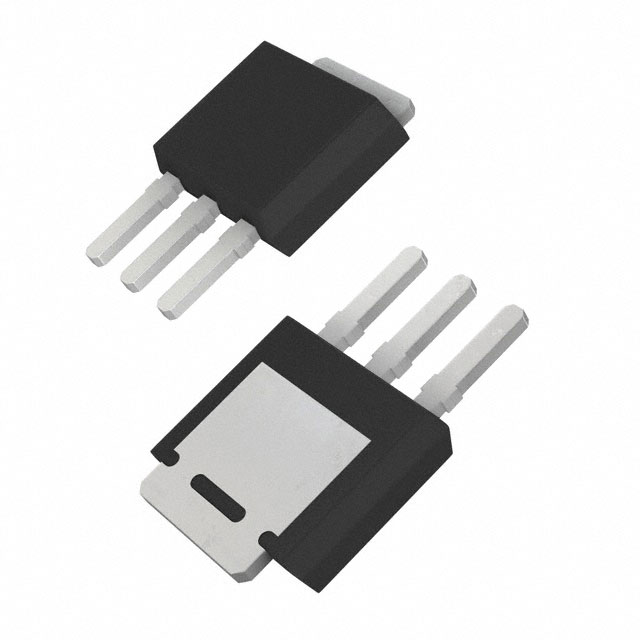

| Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA |
| Mounting Type | Through Hole |
| Triac Type | Logic - Sensitive Gate |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 15 mA |
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 40A @ 60Hz |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | IPAK |
| Current - On State (It (RMS)) (Max) | 4 A |
| Voltage - Off State | 800 V |
|
