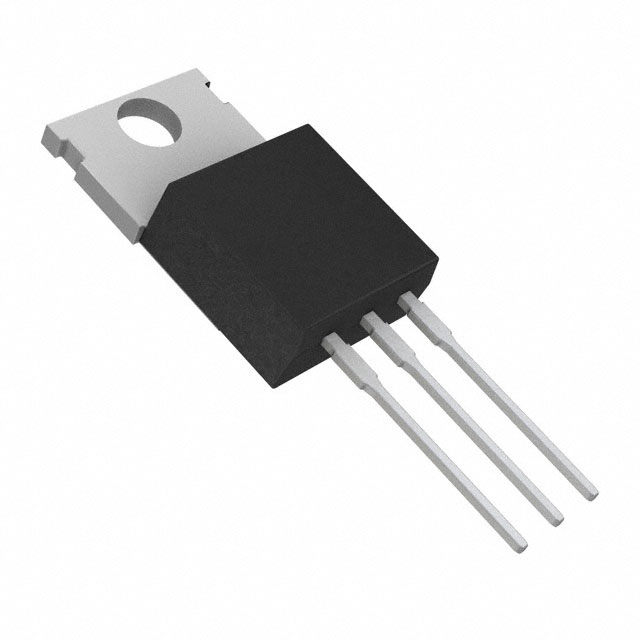

| Part number: | MAC228A4G |
| Description: | TRIAC SENS GATE 200V 8A TO220AB |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Box |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Triac Type | Logic - Sensitive Gate |
| Configuration | Single |
| Operating Temperature | -40°C ~ 110°C (TJ) |
| Current - Hold (Ih) (Max) | 15 mA |
| Current - Gate Trigger (Igt) (Max) | 5 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 80A @ 60Hz |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Supplier Device Package | TO-220AB |
| Current - On State (It (RMS)) (Max) | 8 A |
| Voltage - Off State | 200 V |
|
