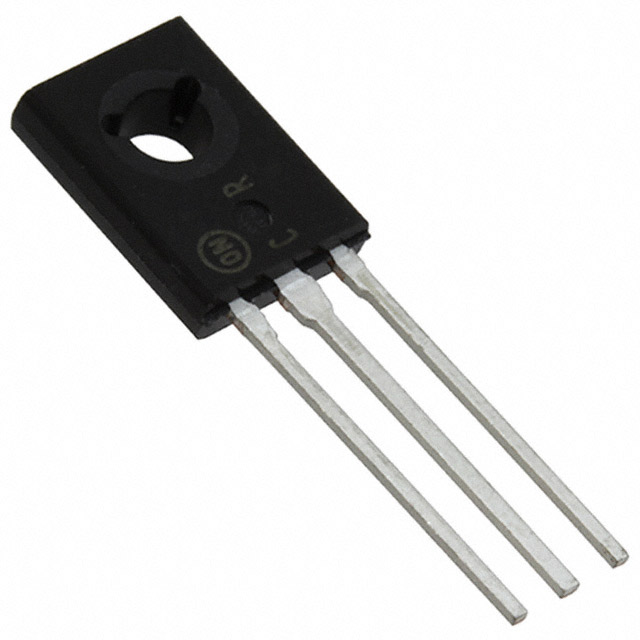

| Part number: | C106D1G |
| Description: | SCR 400V 4A TO225AA |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Box |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | TO-225AA, TO-126-3 |
| Mounting Type | Through Hole |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 110°C |
| Current - Hold (Ih) (Max) | 3 mA |
| Current - Gate Trigger (Igt) (Max) | 200 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 20A @ 60Hz |
| Current - On State (It (AV)) (Max) | 2.55 A |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 2.2 V |
| Current - Off State (Max) | 10 µA |
| Supplier Device Package | TO-225AA |
| Current - On State (It (RMS)) (Max) | 4 A |
| Voltage - Off State | 400 V |
|
