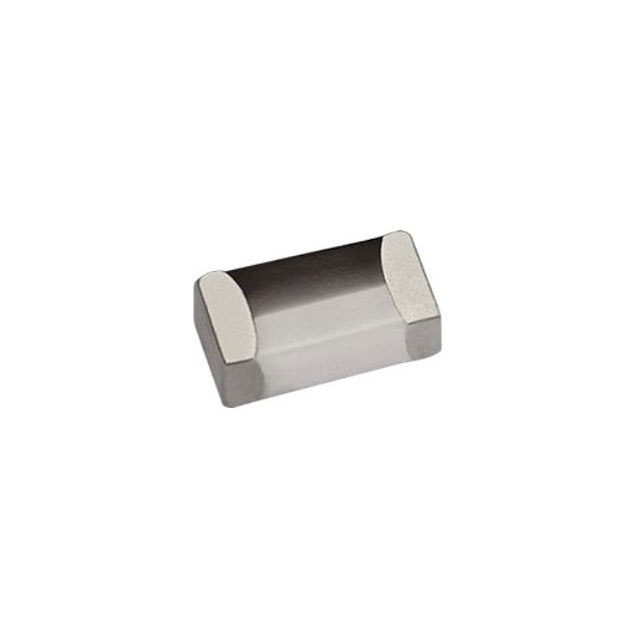

| Part number: | SDCL0402H2N6CT01 |
| Description: | FIXED IND 2.6NH 200MA 600MOHM SM |
| Manufacturer | Sunlord (Shenzhen Sunlord Electronics) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 20000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sunlord (Shenzhen Sunlord Electronics)" |
| Tolerance | ±0.2nH |
| Package / Case | 01005 (0402 Metric) |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Multilayer |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 600mOhm Max |
| Q @ Freq | 8 @ 500MHz |
| Frequency - Self Resonant | 7.5GHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 500 MHz |
| Supplier Device Package | 01005 |
| Height - Seated (Max) | 0.009" (0.22mm) |
| Inductance | 2.6 nH |
| Current Rating (Amps) | 200 mA |
|
